BLDC Motortreiber 250-24

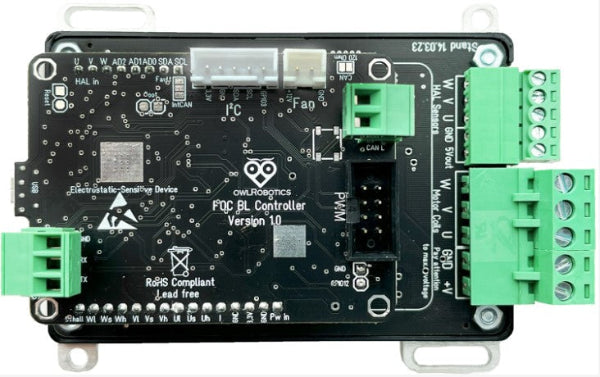

Smartmow Drive, four controllers in one

the smart Brushless Controller & Driver, is a Field Oriented Control (FOC) driver for all kind of DC brushless motors. It offers various features to configure different motor types and the integrated controller can talk different protocols, on different hardware. The easy configuration interface via USB serial terminal provides a simple but effective configuration menu to the user, without specific software apps or tools.

Key Specifications

Drive 24-250 is for 24V DC (15-36V) Brushless Motors up to 250W / 480W peak

Four control modes:

• Torque, controls the motor voltage, motor outputs a certain torque.
• Velocity, controls the motor rounds per min,. motor rotates with a certain velocity.
• Angle / Position, controller sets and hold a given position / angle, motor drives to a certain position.
• Trajectory, controller drives to a position in a certain time, motor drives to certain positions in certain times.

Controller Protocol overview

UART and USB serial uses FOC commander protocol which communicates directly with the FOC-controller.

The configuration (motor config, motion config, CAN config etc.) can be changed and saved via USB serial or CAN bus.
